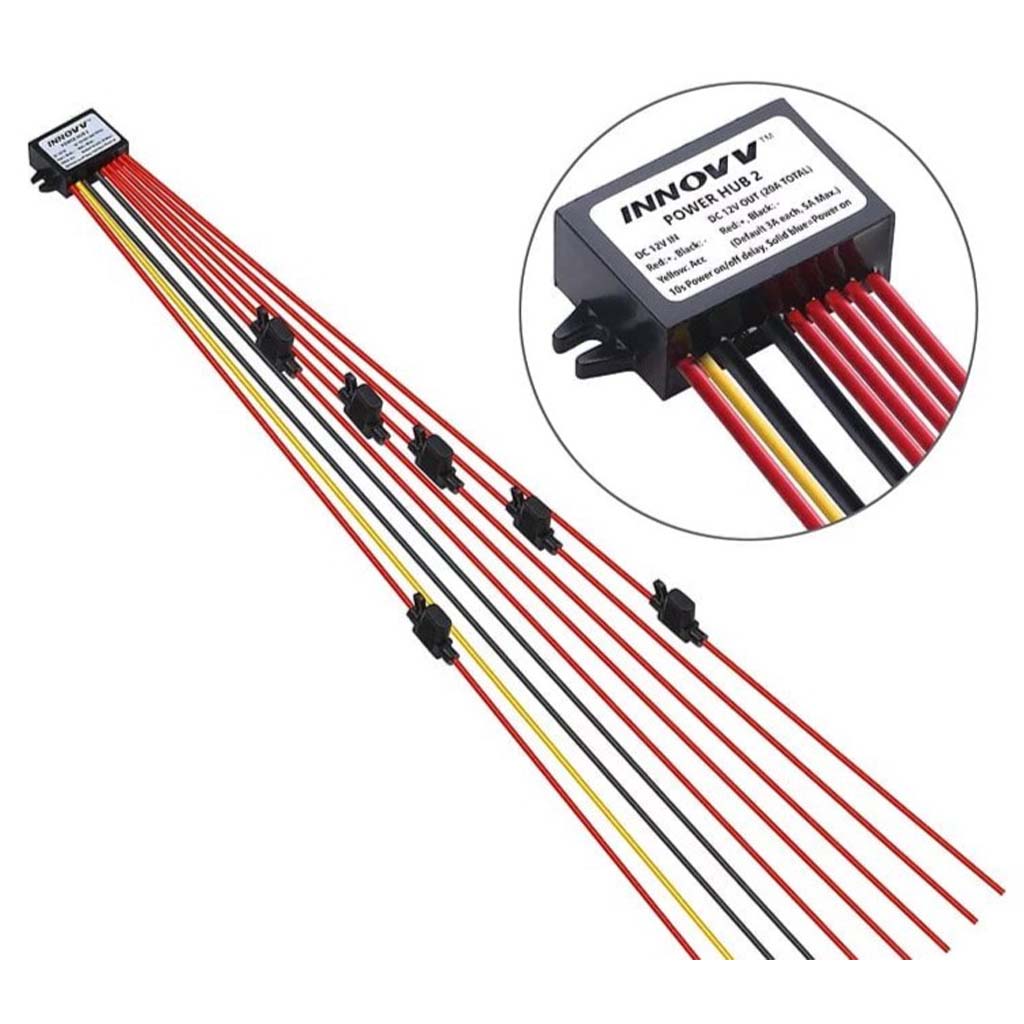

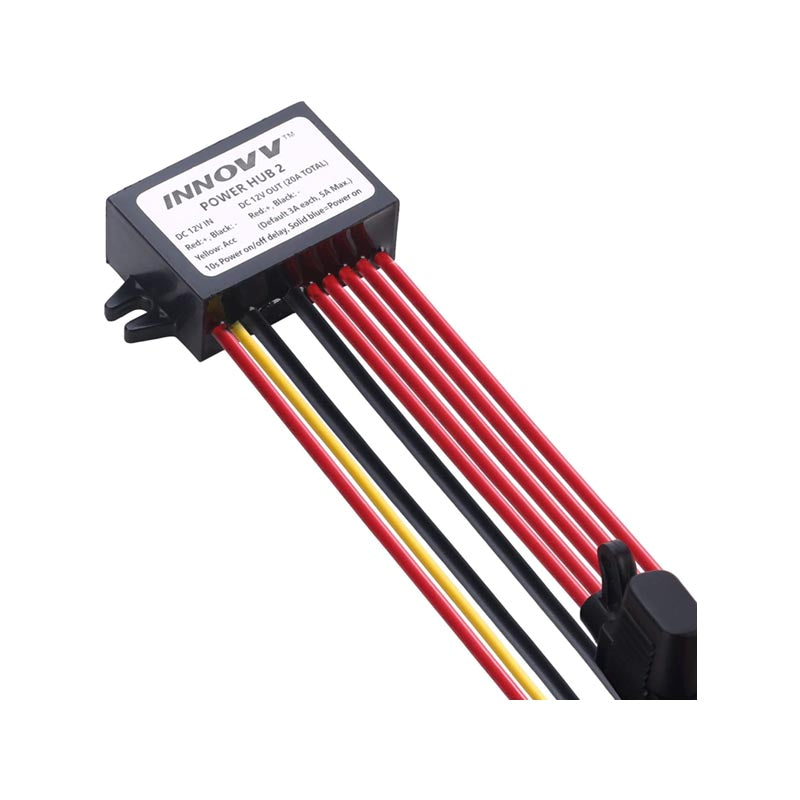

The INNOVV Power Hub 2 keeps everything tidy and is simple to use.
Multiple connection to the battery look unprofessional and messy. The Power Hub 2 allows you to connect up to 5 different accessories... multiple INNOVV camera systems, GPS systems or driving lights. It is powered with the ignition so it turns on and off with the turn of a key and by having a shared ground connection, it keeps everything tidy and easy to use.
Key Features
-
Simple design
- Solid construction
- Water proof
- Dust proof
- Easy use and installation
- Compact in size 46.2mm * 31mm * 18mm
- 1x 20A inline fuse for input
- 5x 3A inline fuse for output
- Connect up to 5 devices

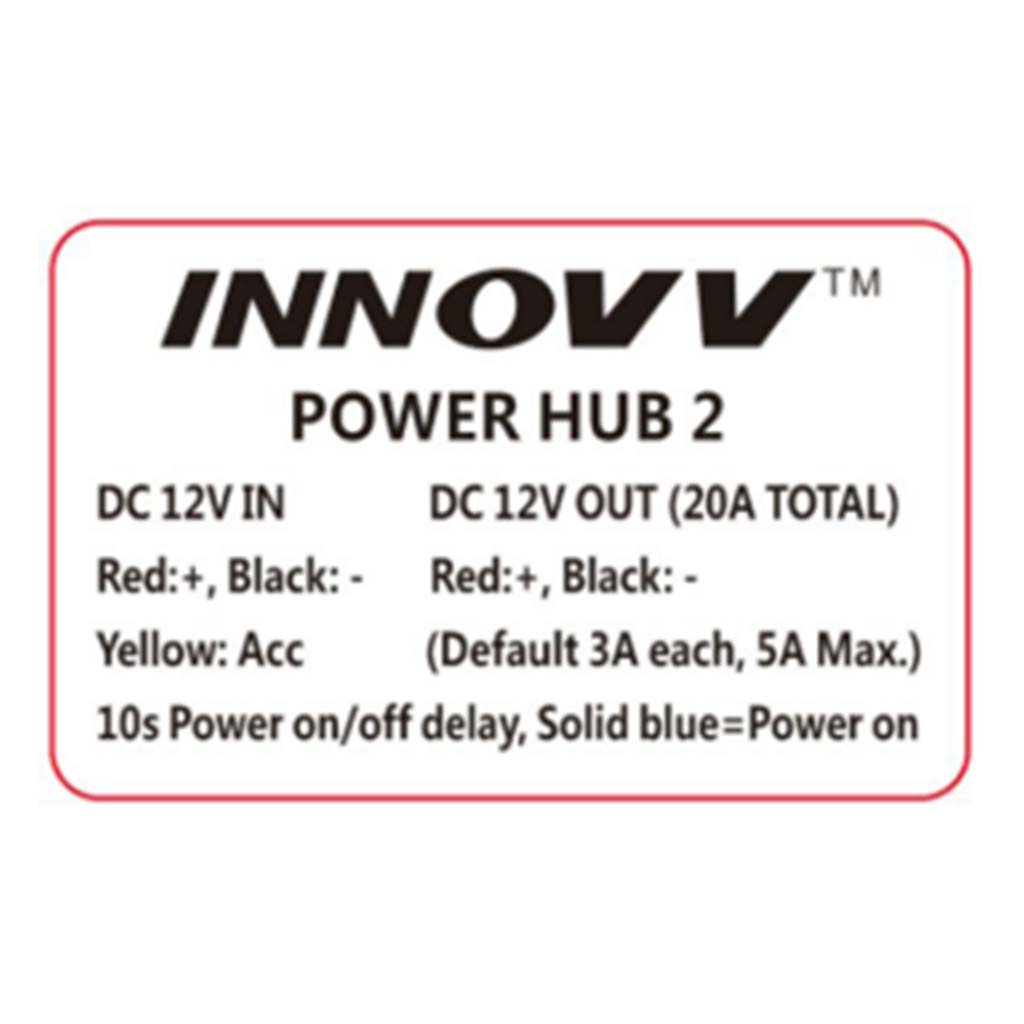

Specifications
-
Maximum input is 20A
- DC 12V in
- DC 12V out (20A total)
- 10 second power on/off delay
- Each output wire has a 3A inline fuse, that can be changed as needed. Each wire can not exceed a capacity of 5A with the total current across all 5 wires not to exceed 20A
- Blue LED solid on indicates power supply
- Yellow wire- ignition trigger. Connect this to switch power source such as headlight or tail light
- The wire send electrical signal to trigger the power supply to 5x red positive (+) output leads
- Positive (+) power lead (input)- red wire - connect to the positive point on the battery
- Ground (-) (input) - black wire - connect to ground point on battery
- Positive (+) power lead (output) - red wire - connect to the positive lead of the devices
- Ground (-) (output) - black wire - connect to the ground lead of all devices
